Build interactive apps with Streamlit in Peliqan, for example to search data, make updates to data, data entry, data quality checks etc.
Streamlit is a wonderful low-code Python module to add UI components with a single line of code per component. Streamlit is built-in into Peliqan and available as the st module.
Contents
UI elements
Show data
# Show a title
st.title("My title")
# Show a text
st.text("My text")
# Show anything, e.g. a JSON object, string, DF...
st.write(my_data)
# Show a chart
st.line_chart(data)
# Load a table from Peliqan and show it as a table, JSON or DF
dbconn = pq.dbconnect('dw_123')
rows = dbconn.fetch('db_name', 'schema_name', 'table_name')
st.table(rows)
st.json(rows)
st.dataframe(rows)
Input elements
Button
button = st.button("Click me")
if button:
# do stuff when button clicked
Dropdown (select)
option = st.selectbox("Please Choose", ["Email", "Home phone", "Mobile phone"])
st.write("You selected:", option)
Use a callback function to handle a selection:
def on_change():
st.text(f"Selected option: %s" % st.session_state.my_selectbox)
st.selectbox("Please choose", ["A", "B", "C"], key = 'my_selectbox', on_change = on_change)
Save selection in Peliqan state and load from state on each run:
options = ["Option 1", "Option 2", "Option 3"]
selected_option = pq.get_state()
index = None
if selected_option:
for i, option in enumerate(options):
if selected_option == option:
index = i
def on_change():
st.text(f"Selected option: %s" % st.session_state.my_selectbox)
pq.get_state(st.session_state.my_selectbox)
st.text(f"Index: %s" % index)
st.selectbox("Please choose", options, index = index, key = 'my_selectbox', on_change = on_change)
Interactive grid with ability to update data
from st_aggrid import AgGrid, GridOptionsBuilder
dbconn = pq.dbconnect(pq.DW_NAME)
df = dbconn.fetch(pq.DW_NAME, 'crm', 'companies', df=True)
gb = GridOptionsBuilder.from_dataframe(df)
gb.configure_selection('single')
gridOptions = gb.build()
grid_response = AgGrid(
df,
gridOptions=gridOptions,
update_mode="SELECTION_CHANGED")
selected = grid_response['selected_rows']
if len(selected):
st.write("Selected company id: %s" % selected[0]["id"])
new_country = st.text_input("Edit country", selected[0]["country"])
if st.button('Update company'):
pq.update_cell(
table_name = "companies",
field_name = "country",
row_id = selected[0]["id"], # must be value from primary key column
value = new_country)
st.write("Company updated ! New country: %s" % new_country)
Upload file & show file (from base64)
import base64
uploaded_file = st.file_uploader("Upload PDF file", accept_multiple_files=False, type=['pdf'])
if uploaded_file is not None:
file_contents = uploaded_file.read()
file_base64 = base64.b64encode(file_contents).decode('utf-8')
html_show_file = f"""<embed src="data:application/pdf;base64,{file_base64}" type="application/pdf" width="100%" height="600px" />"""
st.markdown(html_show_file, unsafe_allow_html = True)
Manage layout of a full-fledged app UI

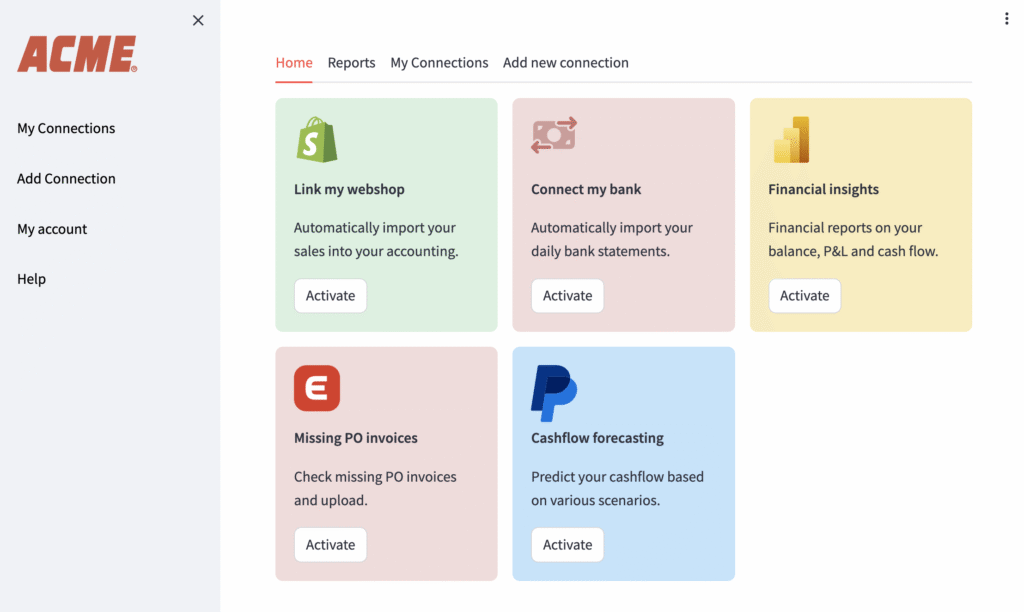

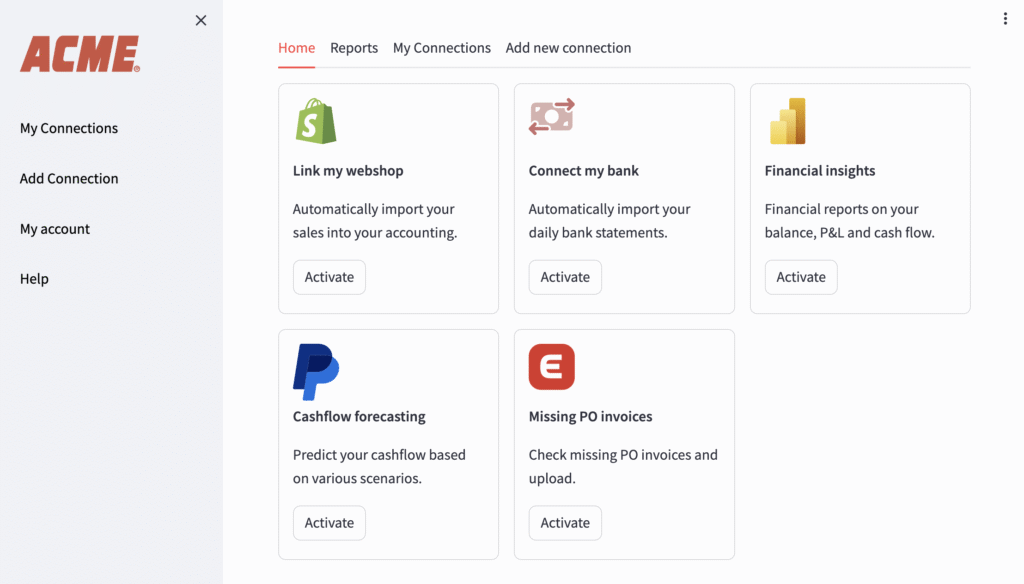

Embedded Portal / Market place
Use Streamlit to build a market place or portal, which can be embedded in your existing SaaS platform:
View example code of the above market place (portal) with tiles
import requests, json
from streamlit_extras.stylable_container import stylable_container
JWT = 'eyJ0eXAiOiJKV1QiLCJhbGciOiJIUzI1NiJ9.eyJ1c2VybmFtZSI6Im5pa29AcGVsaXFhbi5pbyIsImlhdCI6MTY4NTcwMTEzNSwiZXhwIjoyNTQ5NjE0NzM1LCJqdGkiOiI2YzA3MjUxMi1iNzRiLTRmYmQtOWU4ZC0xZDAyNDA2M2E4YjIiLCJ1c2VyX2lkIjoyLCJ1c2VyX3Byb2ZpbGVfaWQiOlsyXSwib3JpZ19pYXQiOjE2ODU3MDExMzUsInRva2VuX25hbWUiOiJnZW5lcmF0ZWRfYnlfdXNlciJ9.2XLuZBsfNvUyc8HrQiwtNx0nxSvnweTE3V5y-IhqbjU'
products = [
{
"name": "Link my webshop",
"description": "Automatically import your sales into your accounting.",
"icon": "https://app.eu.peliqan.io/img/db/shopify.svg",
"color": "#daf1e0"
},
{
"name": "Connect my bank",
"description": "Automatically import your daily bank statements.",
"icon": "https://app.eu.peliqan.io/img/db/gocardless.svg",
"color": "#f1dbda"
},
{
"name": "Financial insights",
"description": "Financial reports on your balance, P&L and cash flow.",
"icon": "https://app.eu.peliqan.io/img/db/shared/powerbi.svg",
"color": "#f9edbd"
},
{
"name": "Missing PO invoices",
"description": "Check missing PO invoices and upload PDF documents.",
"icon": "https://app.eu.peliqan.io/img/db/exactonline.svg",
"color": "#f1dbda"
},
{
"name": "Cashflow forecasting",
"description": "Predict your cashflow based on various scenarios.",
"icon": "https://app.eu.peliqan.io/img/db/paypal.svg",
"color": "#c3e3fa"
}
]
activate_buttons = []
def show_home():
global activate_buttons
col_count = 3
cols = st.columns(col_count)
css_product_bg_colors = ""
for i, product in enumerate(products):
with cols[i % col_count]:
#with st.container(height=250):
# st.image(product['icon'], width = 50)
# st.write('**' + product['name'] + '**')
# st.write(product['description'])
# st.button('Activate', key = f"home_activate_button_%s" % i)
with stylable_container(
key = f"product_container_%s" % i,
css_styles = """
{
background-color: """ + product['color'] + """;
border-radius: 0.5rem;
padding: 20px !important;
height: 250px;
}
.stMarkdown {
width: 80% !important;
}
"""):
st.image(product['icon'], width = 50)
st.write('**' + product['name'] + '**')
st.write(product['description'])
activate_buttons.append(st.button('Activate', key = f"home_activate_button_%s" % i))
def show_reports():
st.write("Add a reporting service on the Home screen first.")
def get_dw_id():
dbs = pq.list_databases()
for db in dbs:
if db.get('server').get('target_type') == 'PELIQAN_SHARED':
return db['server']['id']
def list_connections():
# todo replace with pq.list_connections()
url = "https://app.eu.peliqan.io/api/servers"
headers = {
"Authorization": "JWT " + JWT
}
response = requests.get(url, headers = headers)
return json.loads(response.content)
def show_connections():
cols = st.columns(3)
connections = list_connections()
for i, connection in enumerate(connections):
with cols[i % 3]:
with st.container(height = 200):
st.image('https://app.eu.peliqan.io/img/db/connector-fallback.svg', width = 50)
st.text(connection['name'])
# Not used, requires implementation of connect form in Streamlit app
def add_connection():
dw_id = get_dw_id()
group_id = 27 # todo pq.list_groups()
connector_id = 33 # todo pq.list_connectors()
# todo replace with pq.add_connection()
url = f"https://app.eu.peliqan.io/api/servers/group/%s/" % group_id
data = {
"name": "New connection",
"server_definition_id": connector_id,
"param1": "xxx",
"param2": "xxx",
"password": "xxx",
"group": group_id,
"selected_tables": {
"tables": "__all__"
},
"target_id": dw_id
}
headers = {
"Authorization": "JWT " + JWT
}
result = requests.post(url, data = data, headers = headers)
if result.status_code == 200 or result.status_code == 204:
st.write("Connection added.")
def send_invite(email):
# todo replace with pq.send_connection_invite()
url = "https://app.eu.peliqan.io/api/servers/invite/"
data = {
"recipient": email,
"subject": "Add connection in Peliqan",
"message": "Please click the link below to complete your connection.",
"confirmationRecipient": "no-reply@peliqan.io",
"serverType": "chargebee",
"adapterName": "tap-peliqan",
"connectorName": "SINGER"
}
headers = {
"Authorization": "JWT " + JWT
}
result = requests.post(url, data = data, headers = headers)
if result.status_code == 200 or result.status_code == 204:
st.write("Email sent, make sure to check your spam folder. Return here after adding the connection.")
with st.sidebar:
st.markdown("""
<img src='https://1000logos.net/wp-content/uploads/2021/04/ACME-logo.png' style='width: 150px; margin-top: -100px; margin-left: -10px;'/>
""", unsafe_allow_html=True)
st.button("My Connections", type="primary")
st.button("Add Connection", type="primary")
st.button("My account", type="primary")
st.button("Help", type="primary")
st.markdown(
"""
<style>
[data-testid="stSidebar"] {
width: 150px !important;
}
p {
font-size: 16px !important;
}
.block-container, .st-emotion-cache-13ln4jf {
width: 90% !important;
max-width: 100% !important;
margin-top: 10px !important;
padding-top: 50px !important;
}
[data-testid="stImage"] {
height: 50px !important;
}
button[kind="primary"] {
background: none!important;
border: none;
padding: 0!important;
color: black !important;
text-decoration: none;
cursor: pointer;
border: none !important;
}
button[kind="primary"]:hover {
text-decoration: none;
color: black !important;
}
button[kind="primary"]:focus {
outline: none !important;
box-shadow: none !important;
color: black !important;
}
</style>
""",
unsafe_allow_html=True,
)
tab_home, tab_reports, tab_connections, tab_add_connection = st.tabs(["Home", "Reports", "My Connections", "Add new connection"])
with tab_home:
show_home()
for i, product in enumerate(products):
if activate_buttons[i]:
st.write(f"Thank you, we will activate %s !" % products[i]["name"])
with tab_reports:
show_reports()
with tab_connections:
show_connections()
with tab_add_connection:
st.write("Please enter your email address. You will receive an email to add a connection. Once the connection is added, return here and refresh to see your new connection.")
select_connector = st.selectbox(
"Select a connector to add",
("Exact Online", "Shopify", "Microsoft Dynamics", "Odoo", "Bank statements"))
email = st.text_input("Email")
if email:
send_invite(email)

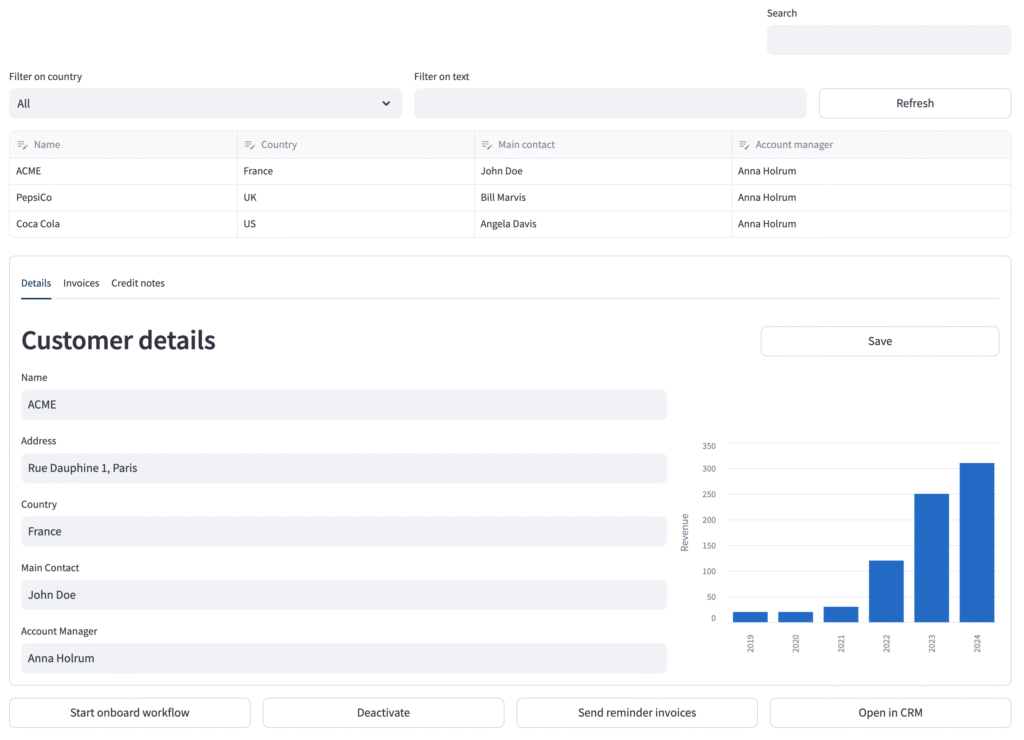

Business application or widget
Use Streamlit to build a business application or widget:
View example code using a Streamlit grid and containers
# https://arnaudmiribel.github.io/streamlit-extras/extras/grid/
from streamlit_extras.grid import grid
customer_list = [
{"Name": "ACME", "Country": "France", "Main contact": "John Doe", "Account manager": "Anna Holrum"},
{"Name": "PepsiCo", "Country": "UK", "Main contact": "Bill Marvis", "Account manager": "Anna Holrum"},
{"Name": "Coca Cola", "Country": "US", "Main contact": "Angela Davis", "Account manager": "Anna Holrum"}
]
st.markdown(
"""
<style>
.block-container {
width: 100% !important;
padding: 20px !important;
max-width: 100% !important;
}
header {
display: none !important;
}
</style>
""",
unsafe_allow_html=True
)
main_grid = grid([3, 1], [2, 2, 1], 1, 1, [1, 1, 1, 1], vertical_align="bottom")
# Grid row 1
main_grid.text("")
main_grid.text_input("Search", key = "search")
# Grid row 2
main_grid.selectbox("Filter on country", ["All", "EU", "UK", "USA"])
main_grid.text_input("Filter on text")
main_grid.button("Refresh", use_container_width=True)
# Grid row 3
#main_grid.table(customer_list)
main_grid.data_editor(customer_list, use_container_width=True)
# Grid row 4
details_container = main_grid.container(border=True)
# Grid row 5
main_grid.button("Start onboard workflow", use_container_width=True)
main_grid.button("Deactivate", use_container_width=True)
main_grid.button("Send reminder invoices", use_container_width=True)
main_grid.button("Open in CRM", use_container_width=True)
with details_container:
tab_details, tab_invoices, tab_creditnotes = st.tabs(["Details", "Invoices", "Credit notes"])
with tab_details:
insidetab_grid = grid([3, 1], [2, 1], vertical_align="bottom")
insidetab_grid.header("Customer details")
insidetab_grid.button("Save", use_container_width=True)
editfields_container = insidetab_grid.container(border=False)
with editfields_container:
st.text_input("Name", "ACME", key = "company_details_name")
st.text_input("Address", "Rue Dauphine 1, Paris", key = "company_details_address")
st.text_input("Country", "France", key = "company_details_country")
st.text_input("Main Contact", "John Doe", key = "company_details_contact")
st.text_input("Account Manager", "Anna Holrum", key = "company_details_accountmanager")
chart_data = {"2019": 20, "2020": 20, "2021": 30, "2022": 120, "2023": 250, "2024": 310}
editfields_container = insidetab_grid.bar_chart(chart_data, height = 300, y_label = "Revenue")
with tab_invoices:
st.header("Customer invoices")
st.text("Nothing found")
with tab_creditnotes:
st.header("Customer credit notes")
st.text("Nothing found")
Layout tips & tricks
Hide top header (with action menu and “Run” animation):
st.markdown(
"""
<style>
header {
display: none !important;
}
</style>
""",
unsafe_allow_html=True
)
Make UI full width:
st.markdown(
"""
<style>
.block-container {
width: 100% !important;
padding: 20px !important;
max-width: 100% !important;
}
</style>
""",
unsafe_allow_html=True
)
